IMP‑LFP48320 Series Wheeled Lithium Battery 16.38KWH

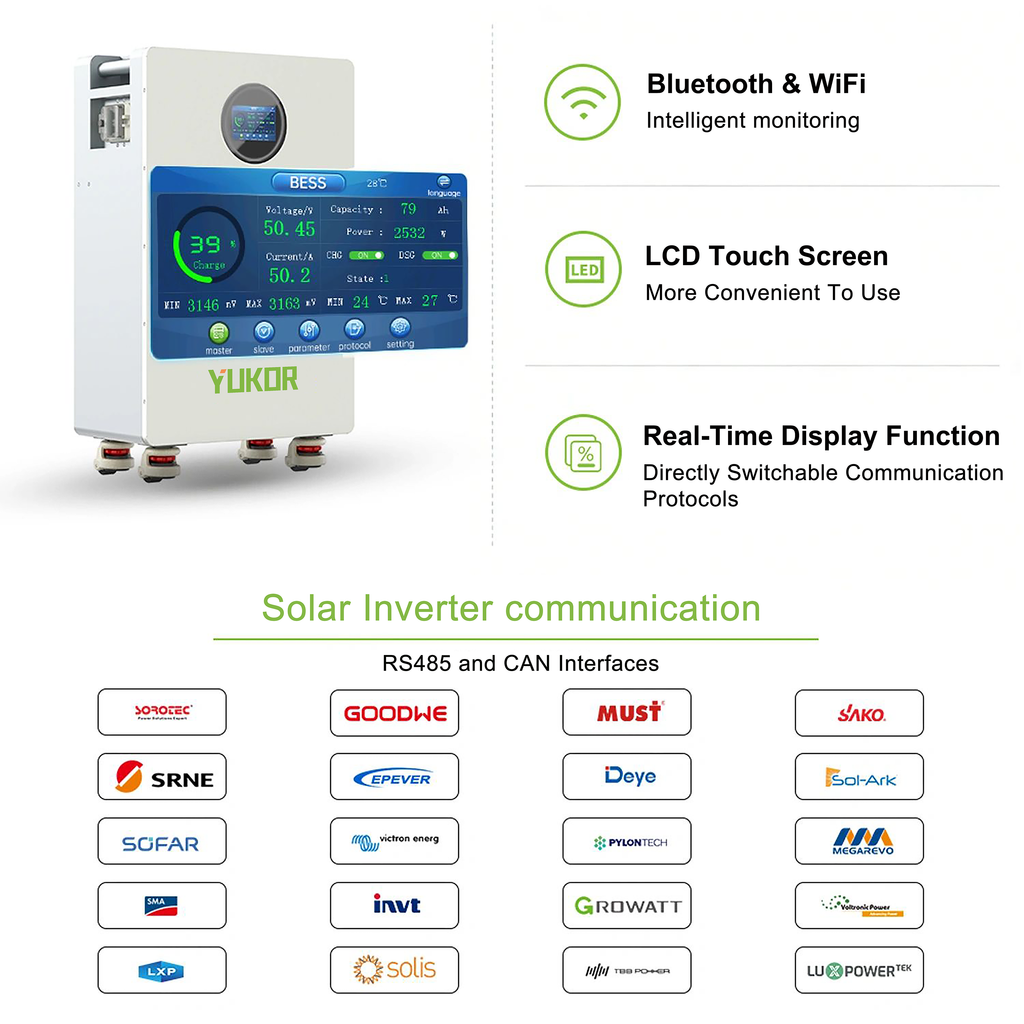

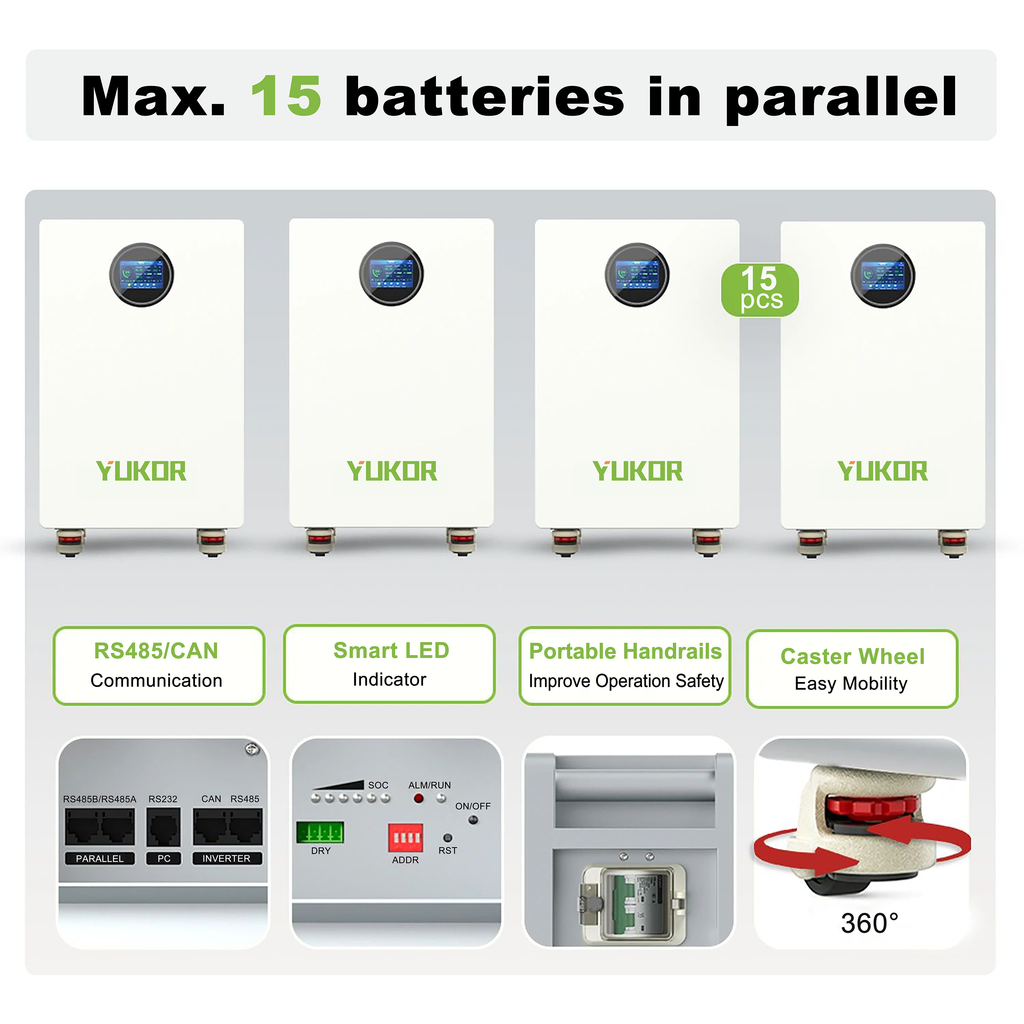

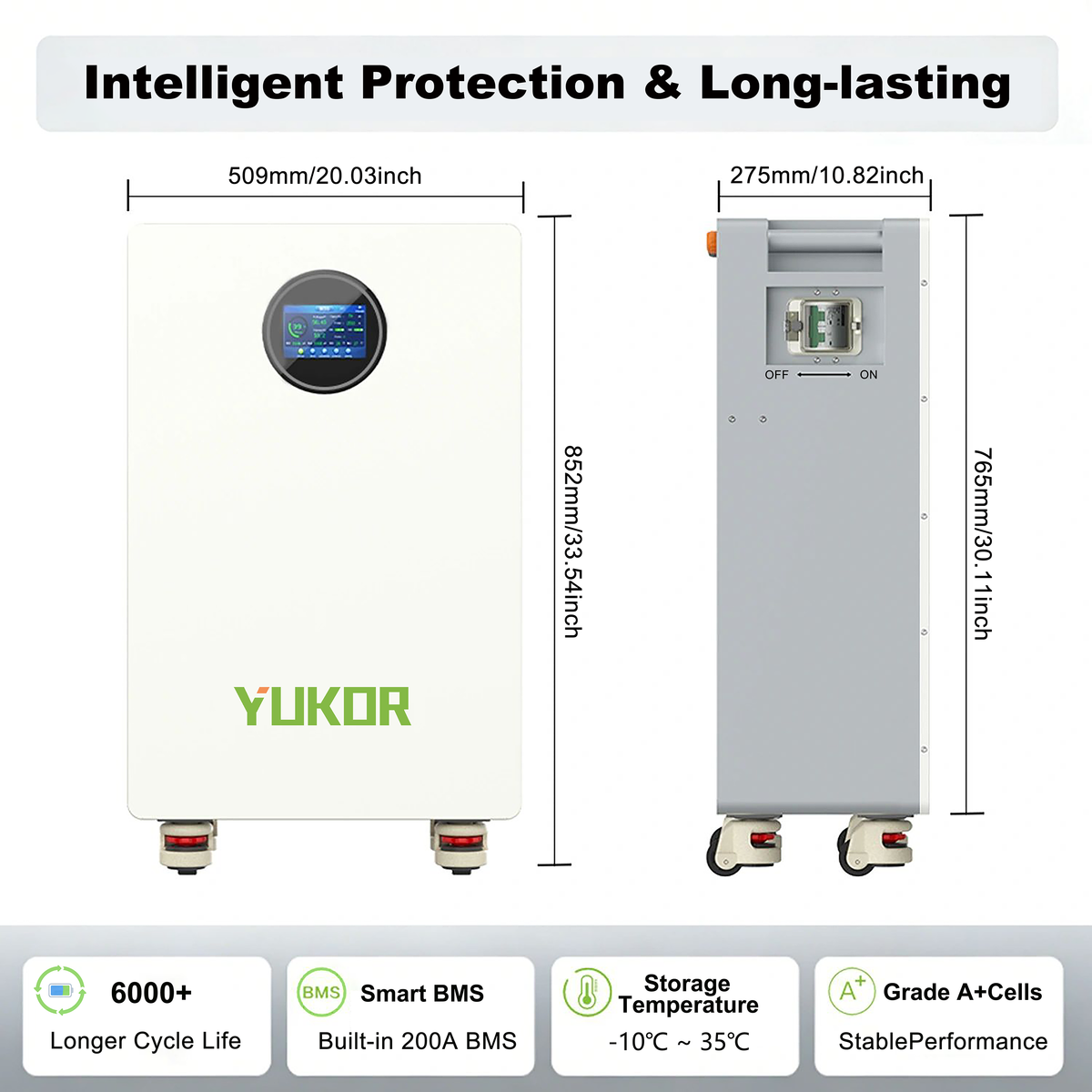

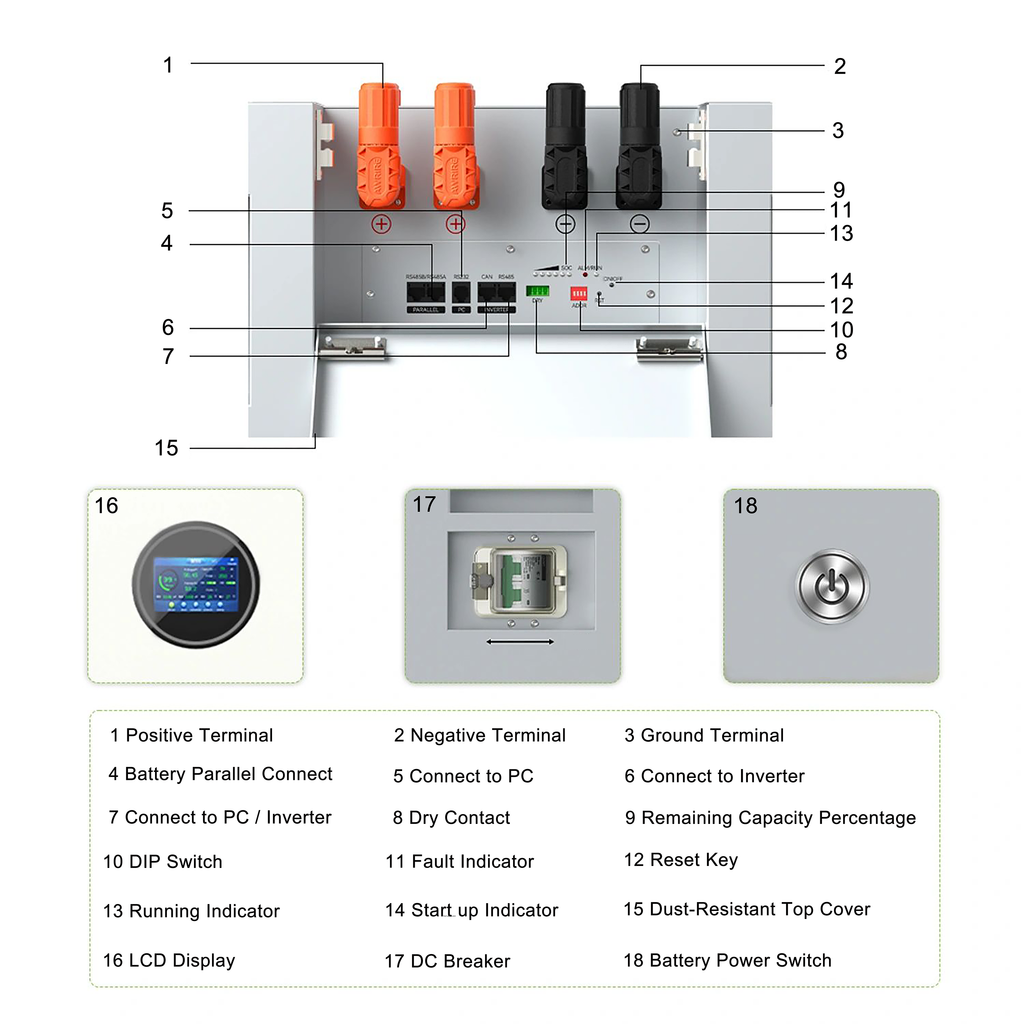

The IMP-LFP48320 is a highly integrated, deep-cycle lithium (LiFePO4) backup power solution offering 16kWh of compact energy storage. It features an all-in-one design (852 x 509 x 275 mm, 133 kg) that saves space while delivering high performance; it is equipped with casters and handles for easy mobility. It includes a smart 200A Battery Management System (BMS) providing comprehensive protection against overcharge, over-discharge, over-current, short circuits, and low-temperature cut-off, with a cycle life exceeding 6,000 cycles for reliability and durability. The system is scalable up to 245.76kWh by connecting up to fifteen 51.2V 320Ah modules, supporting a maximum load of 153.6kW for solar and off-grid applications. Integration is simplified via CAN and RS485 ports (cables included), while an RS232 port allows for computer-based data access. Smart monitoring features include an LCD touchscreen for real-time status and discharge control, as well as Bluetooth/Wi-Fi app monitoring for SOC, voltage, current, and temperature. Operational safety is ensured by a protective cover for the control panel and a built-in switch that allows for safe, tool-free shutdown during off-grid or mobile use. Dual charging options are available: via a 58.4V lithium battery charger or through an inverter/MPPT controller. Please follow the user manual for proper operation.
