IMP-TL48630 Series Wheeled Lithium Battery 32.25KWH
IMP-TL48630 Series Wheeled Lithium Battery 32.25KWH

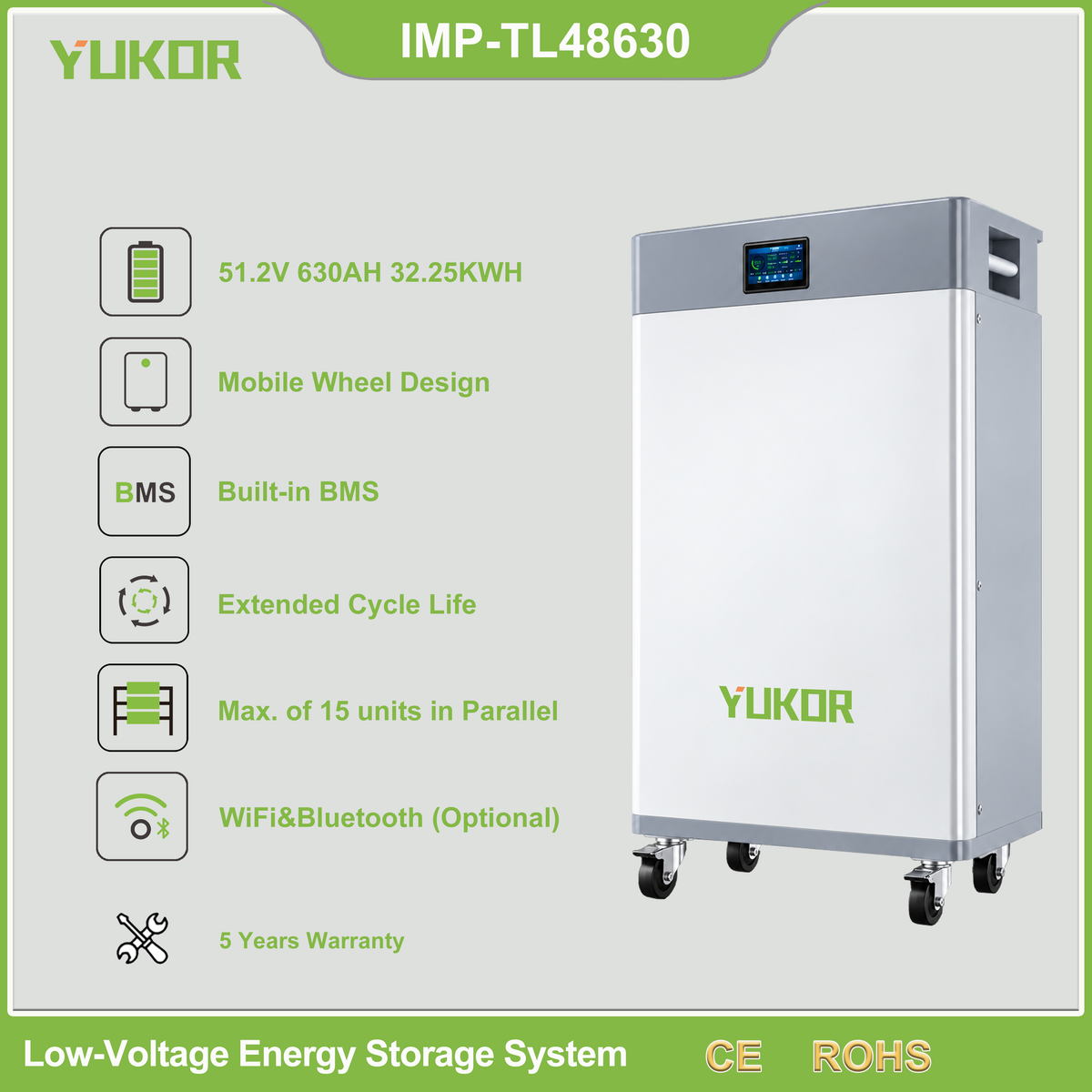

IMP-TL48630 Wheeled Lithium Battery (LiFePO4 Battery) is a highly integrated deep-cycle backup power solution.

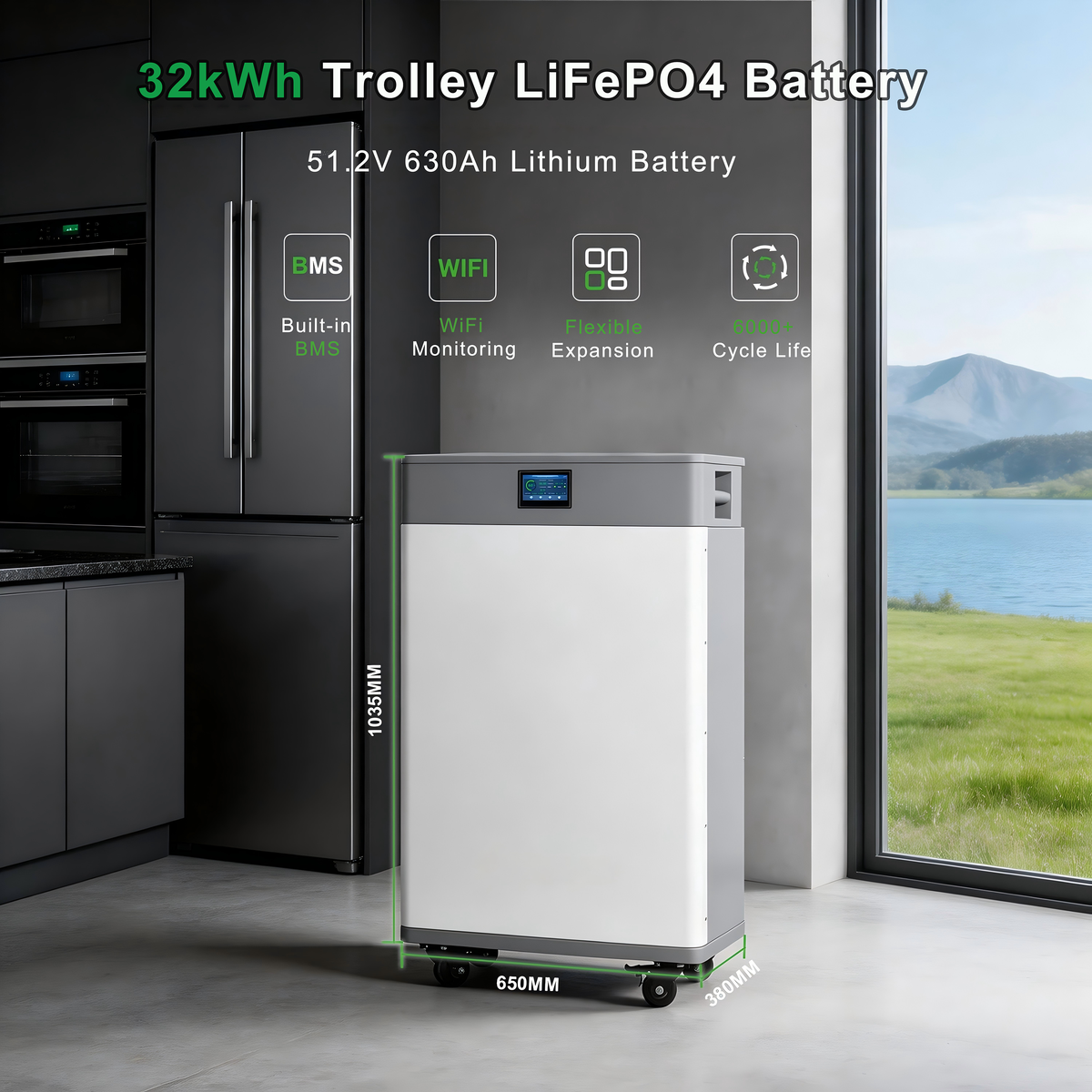

32kWh Compact Energy: Compact dimensions (44.2 × 25.5 × 14.9 inches) with a weight of 621.7 lbs for space-saving installation. Built-in casters and handles enable easy relocation.

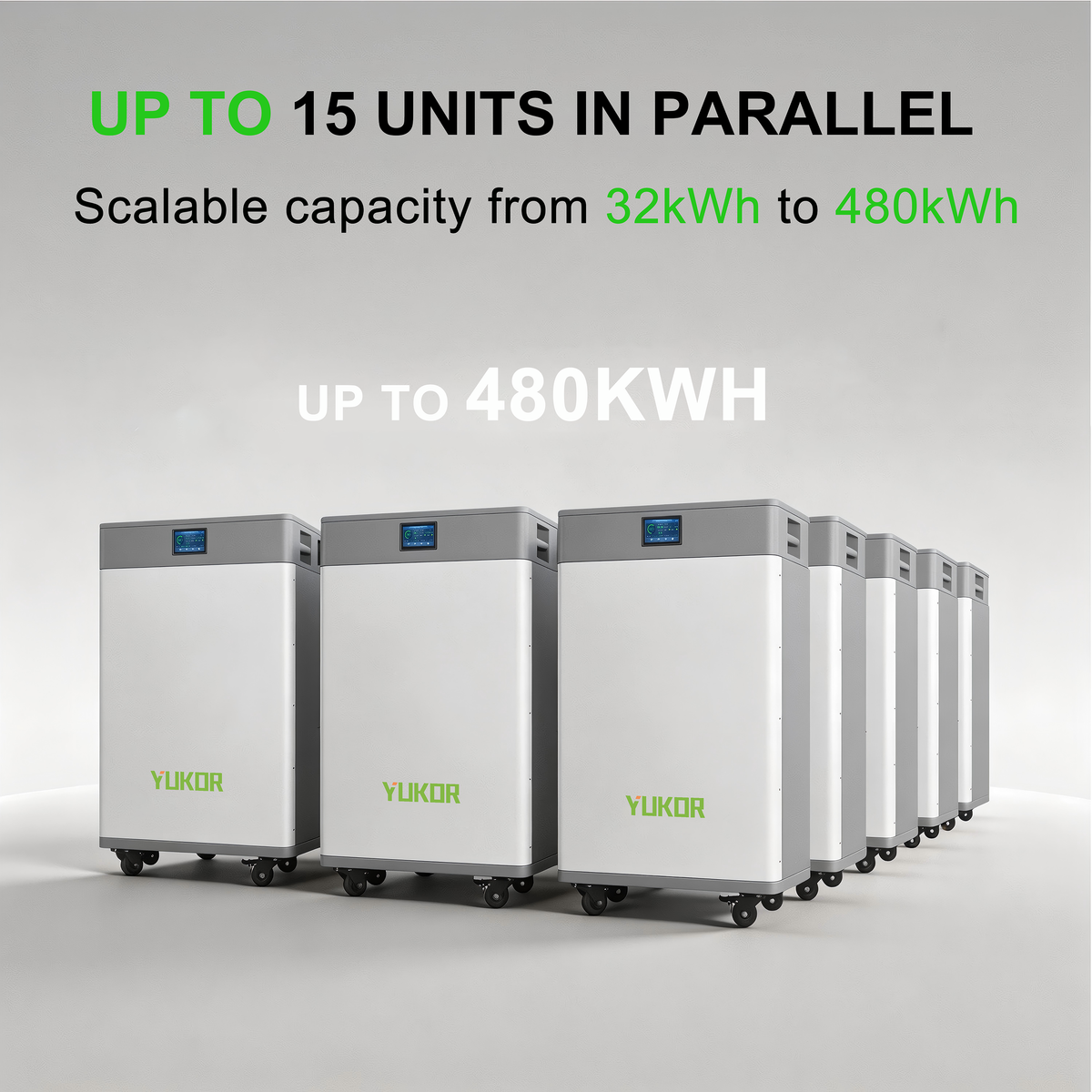

Scalable 245.76kWh Energy System: Each module is 51.2V 630Ah, supporting up to 15 units in parallel. Max. 153.6kW load capacity and 245.76kWh available energy for solar, home storage and off-grid applications.
Smart 200A BMS Protection: Comprehensive protection against over-charge, over-discharge, over-current, short-circuit and low-temperature cut-off. Over 8000 cycle life guarantees reliable and durable performance.
CAN and RS485 ports with cables for simple integration; RS232 interface for PC data access.

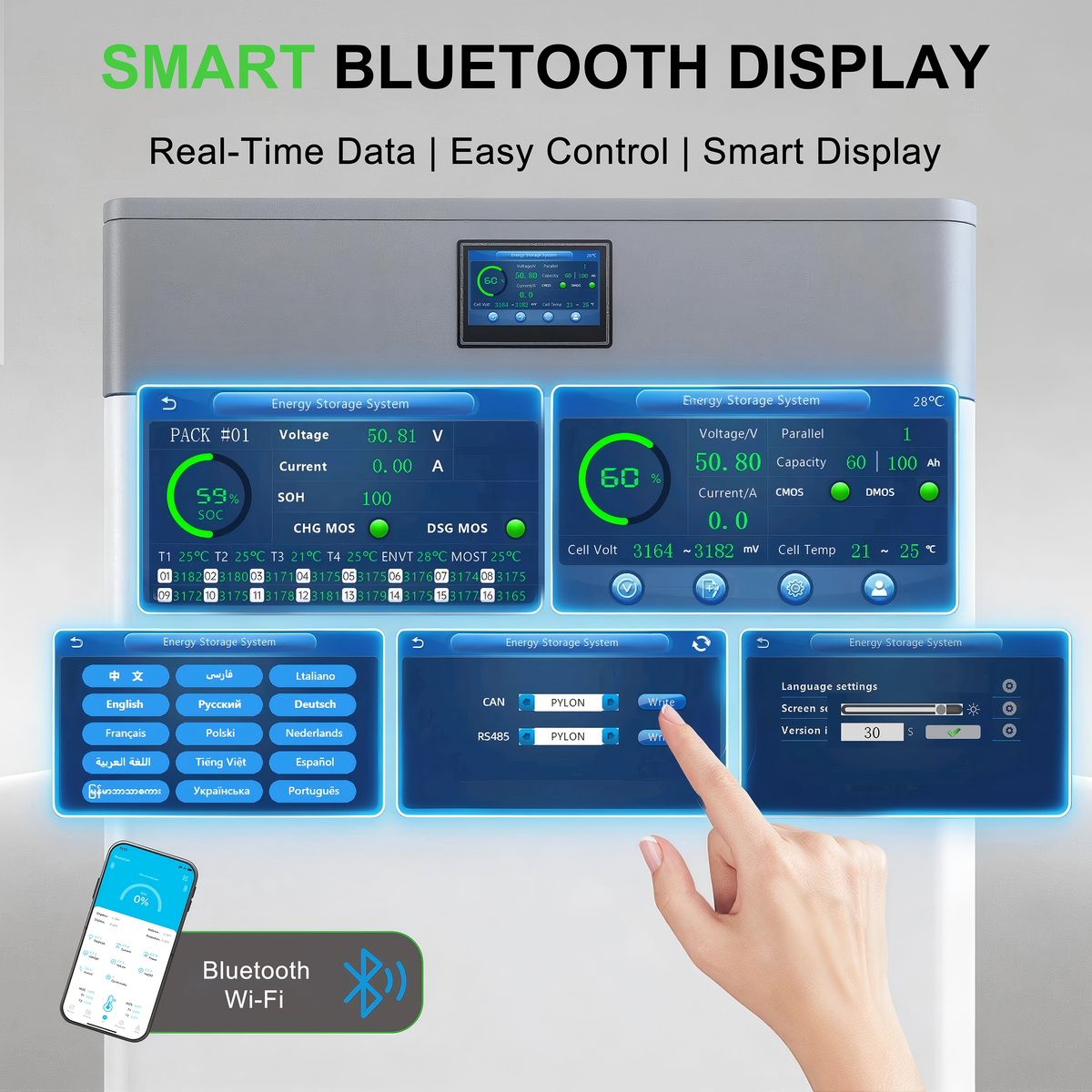

Intelligent Monitoring: LCD touch screen displays real-time status and discharge control; Bluetooth / Wi-Fi APP monitors SOC, voltage, current and temperature.
Safe Operation Features: Protective cover shields the control panel; built-in switch allows tool-free safe shutdown for off-grid or mobile deployment.
Dual Charging Options: Charge via 58.4V lithium battery charger or inverter / MPPT. Please follow the user manual for proper operation.
